FONE540
CP10
AVER FONE540
Specs Features
Overviewget a Quote
Accessories
- Bluetooth / USB wireless PC-Connected.
- Speakerphone with full-duplex microphone array.
- Two omnidirectional microphones provide 360° coverage.
- Cancellation of full-duplex echo.
- Advanced noise cancellation.
- Wideband voice processing that is powerful.
- Adjustable speaker volume to 90 dB SPL at 0.5 m 3.5 mm line-in (aux) A cable connects BYOD smartphones or computers to be used as speakerphones.
- Volume down/up, mute, phone input, call, and hang up are all controlled by touch.
- Can combine phone and USB calls into a single call.

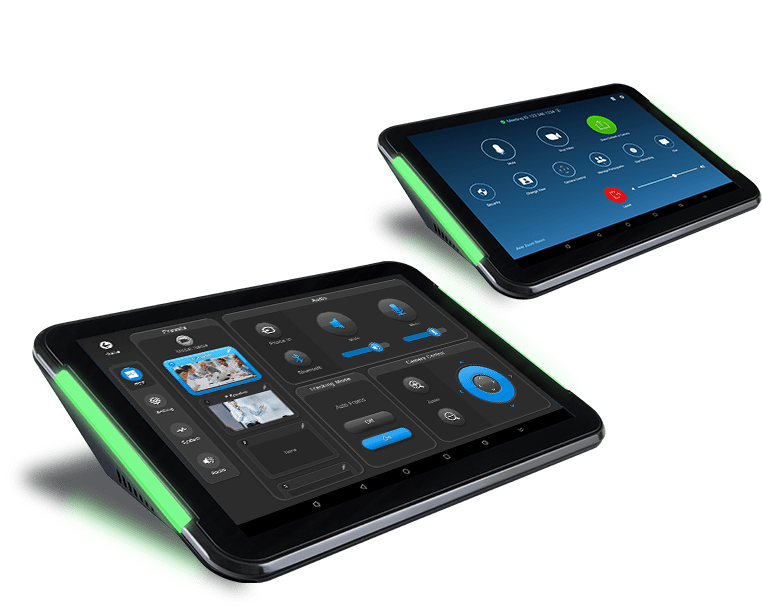

AVER CP10
Specs Features
Overviewget a Quote
Accessories
- 10.1-inch anti-fingerprint screen with antibacterial glass panel.
- 1280 x 800 resolution.
- 16:10 aspect ratio.
- Viewing angle that is both comfortable and ergonomic:
- Built-in table support with a display angle of 23°.
- A 68° display angle wall mount is available as an option.
- Antimicrobial glass is FDA (USA) and SIAA (Japan) approved.
- Unlike traditional antimicrobial film or spray, the glass in the CP10 uses ion exchange technology to retain antibacterial effectiveness throughout the product’s lifetime.
- To keep the table tidy, a single RJ45 cable transports both data and power.
- G-sensor for rotating the screen.
AVER FONE540 Specs
| Speakerphone | Wireless Bluetooth / USB Wired for PC. Full duplex microphone array speakerphone. Two omnidirectional microphones support 360° pickup. Full duplex echo cancellation. Advanced noise suppression. Powerful wideband voice processing. Speaker volume: adjustable to 90 dB SPL at 0.5 m. 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones. Touch controls for volume down/up, mute, phone input, call, and hang up. Can bridge phone-in and USB into one call. |
| Connectivity | 12V power adapter. Micro USB connector. LAN for IP remote access. Expansion port (daisy-chain speakerphone or microphone). 3.5 mm phone-in jack. 3.5 mm line out. |
| Control | UAC, plug and play. WebUI: browser IP access via Chrome™ browser (Internet Explorer not supported). PTZApp. |
| Power | AC 100V ~ 240V, 50/60 Hz. Consumption: 12V, 5A. |
| System Requirement | Windows® 7/10 or later. Mac OS X v10.13 or later. Google Chromebook™ version 76.0.3809.102 or later. Android™ 6 or later. |
| Dimensions | 220 x 181.5 x 49.5 mm/0.85 kg. |
Flexible Connectivity
Noise Suppression
Double-Talk Detection
Three-Way Calls
Clear Led Indicator
Wireless Connection
AVER FONE540 Features
Option 1
Option 2
Expansion Speakerphones / Microphones Adapt to Various Spaces
Embedded with daisy-chain technology, the FONE540 can be expanded by adding up to two additional speakerphones to provide full coverage in all kinds of rooms. Both microphones and speakerphones can also be added to the system, making it a perfect choice in any space.
Advanced Noise Suppression Achieves Amazing Acoustics
Feeling irritated by background keyboard typing and air conditioning sounds during a conference call? The FONE540 silences the noise and guarantees unmatched audio clarity to free you from distractions.
with FONE540
OTHER
Flawless Audio for Fluid Communication
Do people on the other side of your audio meeting still have trouble hearing every word you say? With the FONE540 you won’t have to repeat yourself anymore. Equipped with double-talk detection, the FONE540 makes every call feel like a face-to-face conversation.
A Third Party Can Join Anytime, From Anywhere
The FONE540 speakerphone facilitates easy three-way calling . A third party can participate simply by calling a phone connected to the FONE540 by a 3.5 mm line-in jack. It’s a simple yet effective way for three parties to enjoy a meeting with superior audio quality.
Smart Indicator Lights Clearly Display the Speaker Status
There’s no need to worry about whether everyone in the meeting knows if the FONE540 is on or off, muted or idle. Smart LED indicators enable people in every corner of the room determine the speakerphone’s status with to determine.
AVER FONE540 Accessories
Optional:
PN: 60U0100000AB
Expansion speakerphone (10 m cable included)
Optional:
PN:60U0100000AC
Two expansion microphones (two 5 m cables included)
AVER CP10 Specs
| Display | Antibacterial glass panel*. 10.1-inch anti-fingerprint screen. Resolution: 1280 x 800. Aspect ratio: 16:10. Comfortable and ergonomic viewing angle:. Built-in table stand with a 23° display angle. Optional wall mount with a 68° display angle. |
| Technology | Capacitive-touch sensor supports 10 touch points. Side LED bar clearly reveals meeting status: Muted/unmuted/room availability*. A single RJ45 cable carries both data and power to keep the table neat. G-sensor for screen rotation. |
| System | Android 10. |
| Connectivity | Power over Ethernet (PoE+). USB 2.0 Type A (x1) for diagnostics and firmware upgrades. |
| Mount and Security | Wall-mount kit (optional). Kensington security lock. |
| Power | Consumption: 12V/1A. |
| Dimensions | 250 mm x 174 mm x 85 mm / 0.9 kg. |
| Applications for Meeting Collaboration | Zoom Rooms controller app (preinstalled). AVer PTZApp2: Camera setting software (preinstalled)*. View live video, set camera parameters. Intuitive touch interface for camera control. Compatible with AVer USB cameras. |
AVER CP10 Features
HUDDLE ROOM
SMALL ROOM
MID-LARGE ROOM
Option 1
One Touch Starts Efficient Communication
Initiate meetings with just one touch. The AVer CP10 is seamlessly integrated with Zoom Rooms software, and its capacitive-touch sensor supports 10-point touch on a 10.1-inch anti-fingerprint screen. The CP10 is always on standby.
One Cable Connects Everything
Simplify meetings via a single Ethernet connection that delivers both power and camera control. With the CP10 in the room, it’s incredibly easy to keep the table clear of clutter so you can focus on your work.
with FONE540
One Antibacterial Solution Keeps Everyone Safe
Enjoy a safer environment with the CP10’s antibacterial touch screen. This innovative technology lets you touch the screen without leaving germs on the surface. Get the 24/7 Antibacterial protection you need.
One Intuitive Interface Simplifies Operation
Anyone can use the CP10 to run a video call, thanks to its intuitive interface. Also, the integrated AVer PTZApp enables camera setup and control, including features like visual preset points. You can even personalize the system to improve productivity.
One Step Sets up the Best Viewing Angle
Setting up the CP10 requires minimal time and energy. Plug in one cable and it’s ready to use. A built-in stand offers a comfortable 23° viewing angle for ergonomic tabletop usage, or you can use it as a scheduling panel, installing it on the wall via its convenient slide-in moun
AVER CP10 Package Content
CP10
Warranty statement
Quick Start Guide
PN: 0412U360-ASJ
One-Touch Meetings
One-Cable Connection with PoE+
Antibacterial Touch Glass
Intuitive Interface
